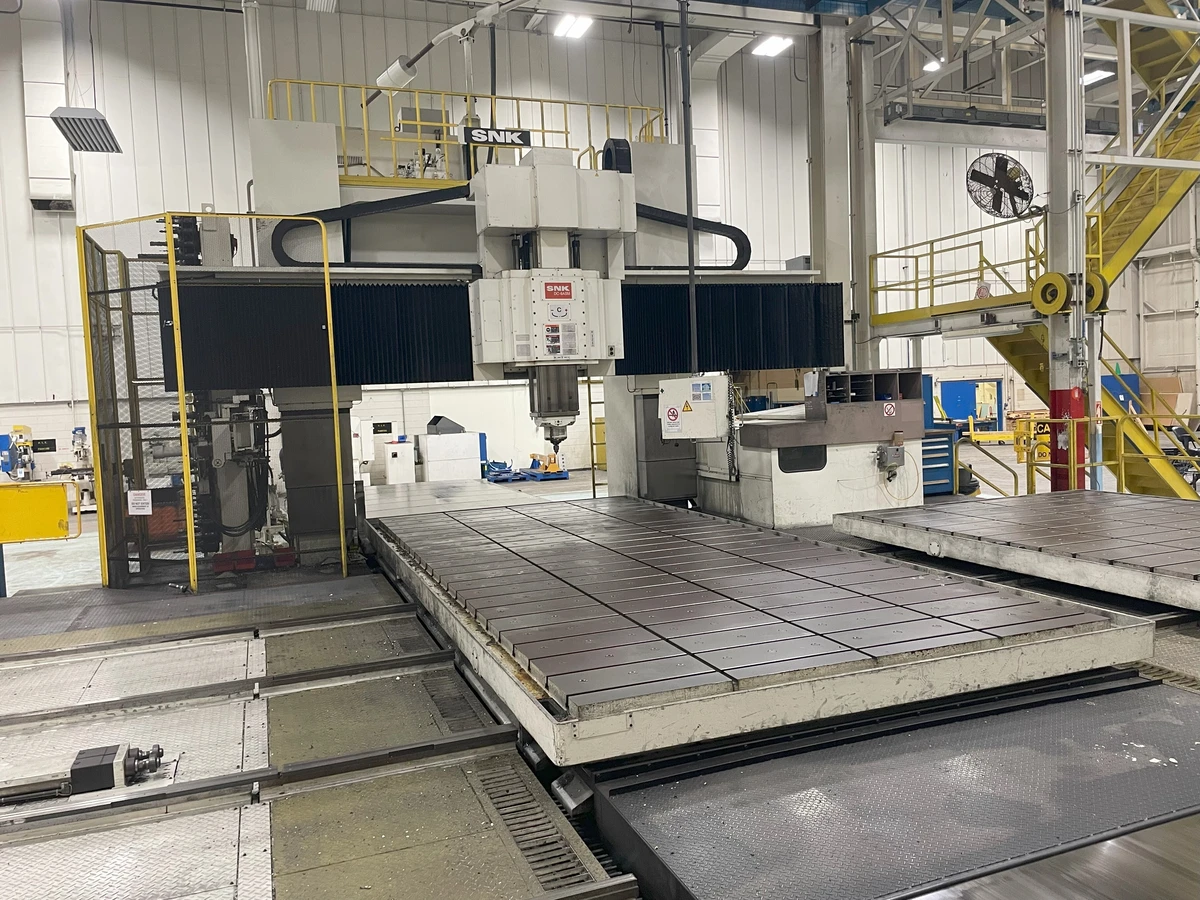

SNK Hi-Speed Milling Machine, Model: DC-6ASM
Gantry Machining Centers (incld. Bridge & Double Column)X | 285.4" |
Y | 165.4" |
Z | 31.5" |
Power | 50 hp |
RPM | 4,000 RPM |
# ATC | 90 |
Table-W | 118.1" |
Table-L | 275.6" |
Capacity:
Distance Btwn Columns: 137.7"
Table Longitudinal (X): 285.4" + APC (78.7"
Spindlehead Transverse (Y): 165.4" +AAC 33.5"
Ram Vertical (Z): 33.5"
Crossrail Vertical (W): 57.1"
Distance from Pallet Top to Spindle End: 90.6"
Pallet:
Working Surface: 275.6" x 118.1"
Workpiece Capacity: 77,160 lbs.
Height from Machine Installed Face to Top of Pallet: 43.3"
Spindle:
Speed: 10 to 4,000 RPM
Spindle Nose: ISO No. 50 (Accepts CAT 50)
Bearing Inner Diameter: 4.72"
Feedrates:
X, Y-Axis: 787.3 IPM
Z-Axis: 472.4 IPM
W-Axis: 118.1 IPM (For Positioning)
Cutting Feed (X,Y,Z-Axis) 1-590.5" IPM
CNC System:
DCS-V (Fanuc 300i Base)
